iQue Forecyt® Reference Guide (Version 10.0)

Curve Fit: Dose Response

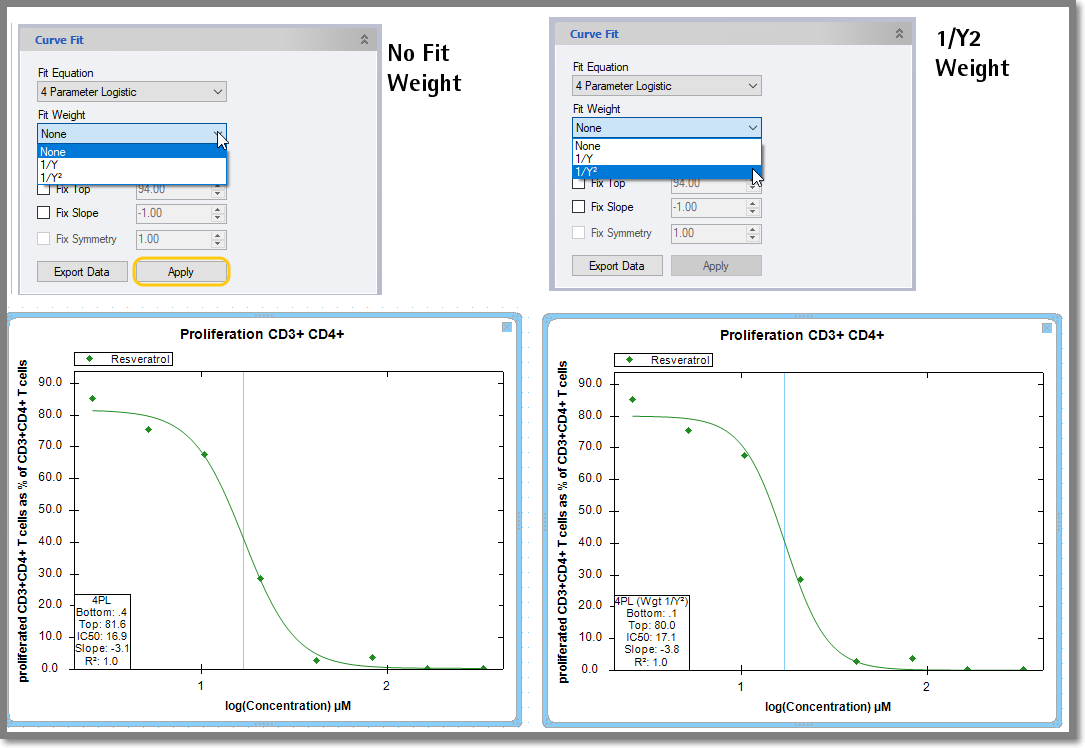

The Curve Fit pane connects the data points of your Series and provides the mechanism to make adjustments.  There are check boxes to select specific characteristics and a drop-down of modification options. Changes do not happen on the fly. You must click Apply to initiate the changes. The Export Data option allows you to export the data from the selected graph to a .csv file. The following screenshot shows examples of Curve Fit options and the changes in the graph.
