iQue Forecyt® Reference Guide (Version 10.0)

Installation Prime Fluidics

After an iQue3/iQue PLUS has been purged, it must be re-primed before it can be used again. The installation priming process takes approximately 40 minutes and requires an inline sheath filter; a Fluid Link; a Probe and Tubing assembly; and an empty 500 mL beaker. Make sure you have everything before you begin.

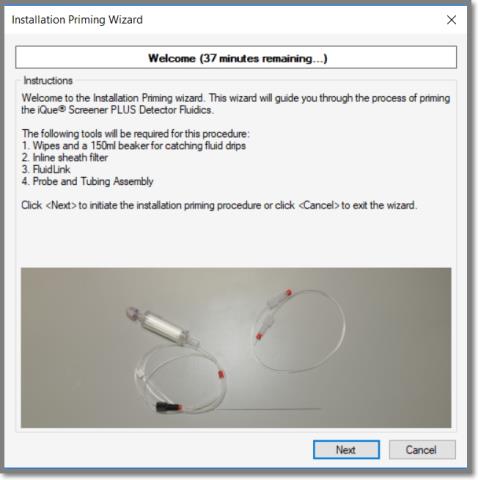

The Installation Priming wizard will welcome you and list the supplies you need to continue.

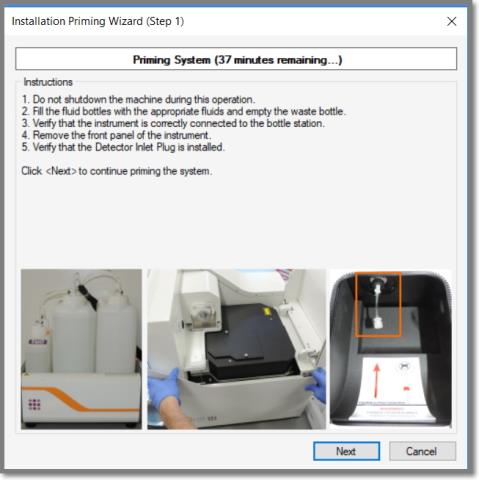

When the priming begins a progress bar begins to count the time left in the process.
